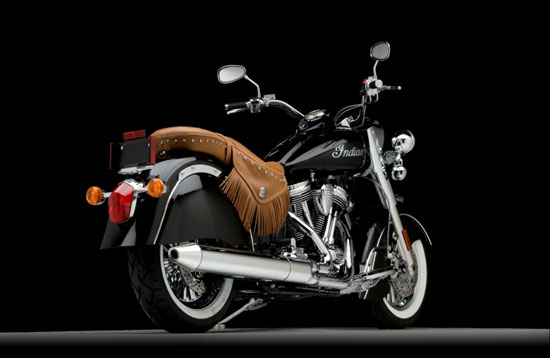

Indian Chief Deluxe, 2009
Dimensions
Note: All specification subject to change
Length 100.5”
Width 40.5”
Height 50.5”
Seat Height Laden 26.69”
Seat Height Unladen 27.89”
Wheelbase 68.4”
Dry Weight
(will vary for each model)
738 lbs
Running Order Weight 773 lbs
Rake Steering Head/Trail 34°/5.92”
GVW - Gross Vehicle Weight 1260 lbs
Engine
Engine Type Power Plus 105, Air-Cooled
Displacement 105 Cubic Inches
Bore x Stroke 3.966 x 4.25
Compression Ratio 9 to 1
Engine Torque 100 ft*lbs (TBD)
Fuel System Closed Loop Sequential Port Fuel
Injection
Driverain
Primary Drive Chain
Gearbox Six Speed
Gear Ratio (overall)
1st 10.441:1
2nd 7.090:1
3rd 5.172:1
4th 3.984:1
5th 3.193:1
6th 2.771:1
Final Drive Belt
Chassis
Frame High tensile steel, rear monoshock
Suspension/Front Diameter 41 mm/Travel 108 mm
Suspension/Rear Single shock/Travel 73 mm
Brakes/Front Dual Calipers with Floating Rotors
11.5” Diameter
Brakes/Rear Single Caliper Floating Rotor
11.5” Diameter
Tires/Front 130/90-16 Black or White Wall
Tires/Rear 150/90-16 Black or White Wall
Wheels Wire spoked
Exhaust System Two Into One Stainless Steel With
Chromed Shields
Electrical
Electrical Instruments Tank mounted analog speedometer and
muti function digital display
Charging System 42 Amps
Lamps Tear drop head lamp, glass front fender
light, auxillary spot lights.
Warranty : 2 years
Pricing : $31,999*
Standard Equipment
Short Fenders
Two Up Seat, Black Leather
Prices and specifications subject to change without notice.
